New York and Eastern Rail Road

Old Layout Design

These pages document the original module-based layout design, superseded by the current XTrackCAD plan.

Room Layout

Layout CAD plan

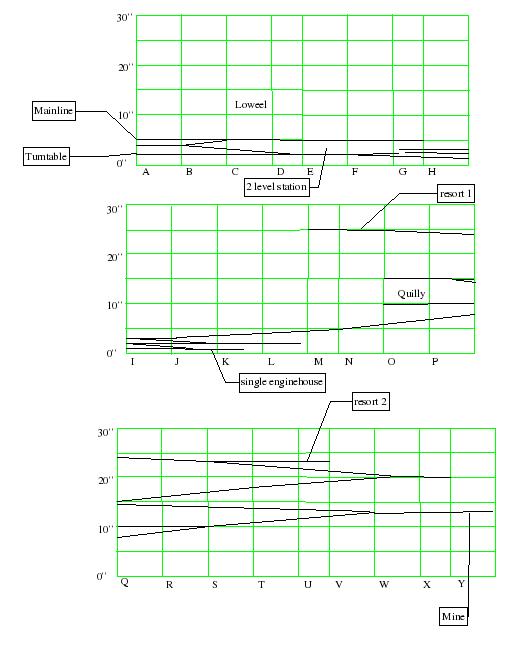

Layout Elevation

Layout elevation diagram

Module Designs

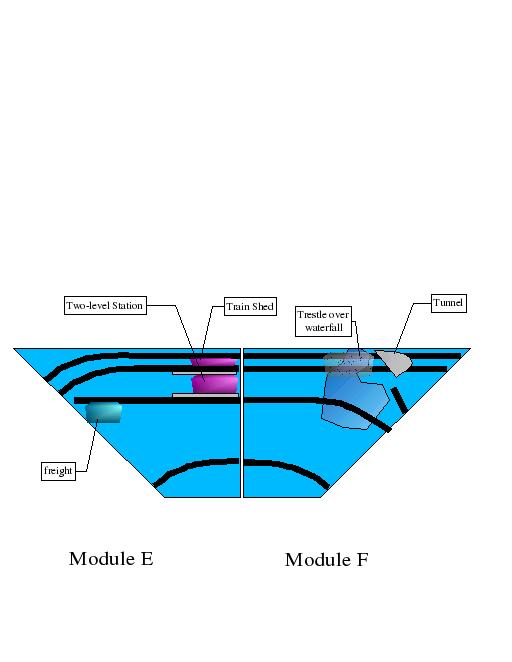

Module E-F

Module E-F diagram

These two modules are the Loweel two-level station. The main road passenger stops on the upper level under the train shed. The branchline passenger cars would wait on the lower level. Module F would have a trestle over the waterfall between the station and the tunnel entrance.

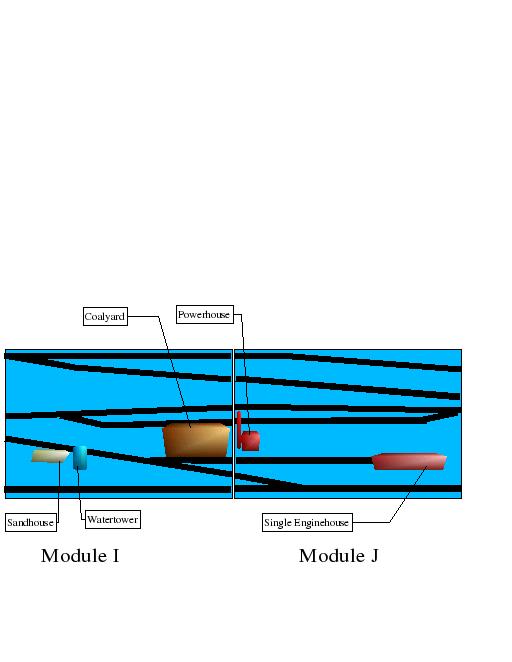

Module I-J

Module I-J diagram

These two modules are the service area for the helper engine. The coal yard supplies the town of Loweel as well. The siding closest to the yard is mainly for the gondola to dump coal, but can be used as a passing siding for the helper engine when not in use. Appropriate service equipment, including clean out pit and hoists, would be expected to exist in front of the enginehouse.

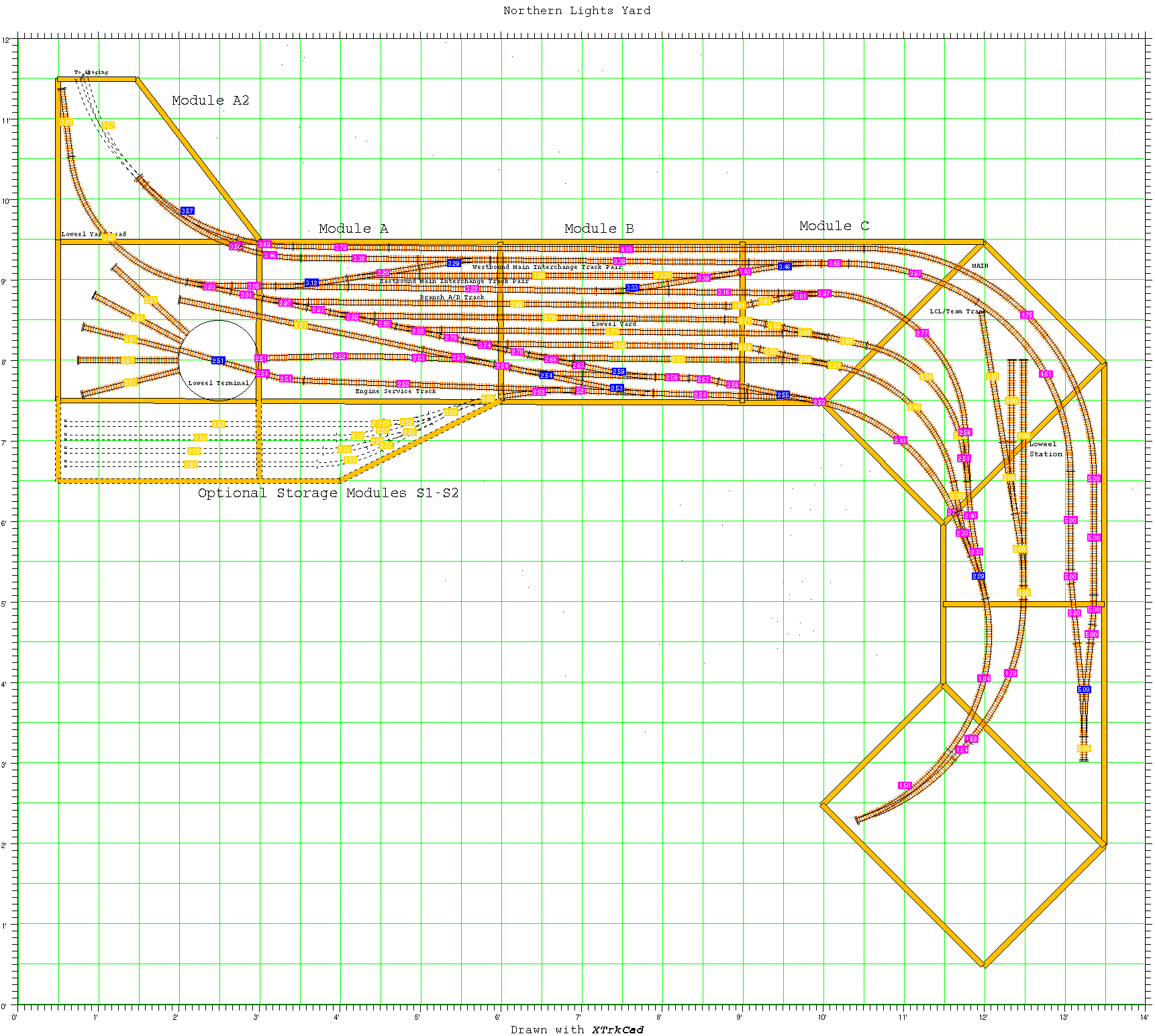

Yard Design

Alternate turntable yard CAD Alternate turntable view of the yard.
